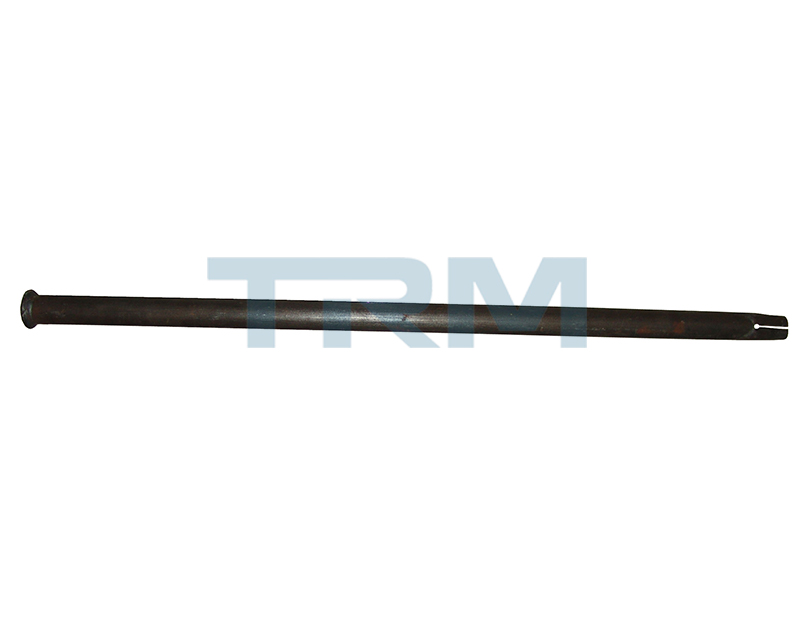

| DIMENSIONS | ||
| Bolt Diameter | A | 33mm |
| Bolt Length | B | 600-3000mm |
| Taper End Diameter | C | 28mm |
| Taper Slot Wide | D | 2mm |
| Taper Length | E | 60mm |
| Bolt Slot Wide | F | 12mm |
| Ring Location | G | 3mm |
| Material Guage | H | 2.0-2.5mm |
| Ring Wire Guage | I | 6mm |
| Ring Open Gap | J | 5.0-6.0mm |
| PHYSICAL PROPERITIES | TECHNICAL DATA | ||
| Yield Strength | Min. 345 Mpa (70KN) Typical 445 Mpa (95KN) | Recommended Norminal Bit Size | 31-33mm |
| Tube Ultimate Tensile Strength | Min. 470 Mpa (100KN) Typical 530 Mpa (115KN) | Typical Breaking Capacity | 107KN |
| Mass per Meter | 1.67 Kgs | Minimum Breaking Capacity | 71KN |
| Cross Section Area | 212 mm² | Recommended Initial Anchorage | 3 - 6 Tons (27 - 53 KN) |
| Hole Diameter Range | 30-32mm | Ultimate Axial Strain | Typical 21% (Thickness<16mm) |
| TRM Bolt Code | Bolt Description | Diameter (mm) | Length (mm) | Surface Finsih | Weight (Kgs) | Pack QTY (Pcs) | Ring Color ID |
| FB33-0600 | Friction Bolt 33x0600 | 33 | 600 | Untreated | 1.00 | 300 | |
| FB33-0900 | Friction Bolt 33x0900 | 33 | 1800 | Untreated | 1.50 | 300 | |
| FB33-1200 | Friction Bolt 33x1200 | 33 | 2100 | Untreated | 2.00 | 300 | |
| FB33-1500 | Friction Bolt 33x1500 | 33 | 2400 | Untreated | 2.50 | 300 | |
| FB33-1800 | Friction Bolt 33x1800 | 33 | 3000 | Untreated | 3.00 | 300 | |
| FB33-0600G | Friction Bolt 33x0600 HDG | 33 | 600 | Hot Dip Galv. | 1.05 | 300 | |
| FB33-0900G | Friction Bolt 33x0900 HDG | 33 | 900 | Hot Dip Galv. | 1.58 | 300 | |
| FB33-1200G | Friction Bolt 33x1200 HDG | 33 | 1200 | Hot Dip Galv. | 2.10 | 300 | |
| FB33-1500G | Friction Bolt 33x1500 HDG | 33 | 1500 | Hot Dip Galv. | 2.63 | 300 | |
| FB33-1800G | Friction Bolt 33x1800 HDG | 33 | 1800 | Hot Dip Galv. | 3.15 | 300 |
