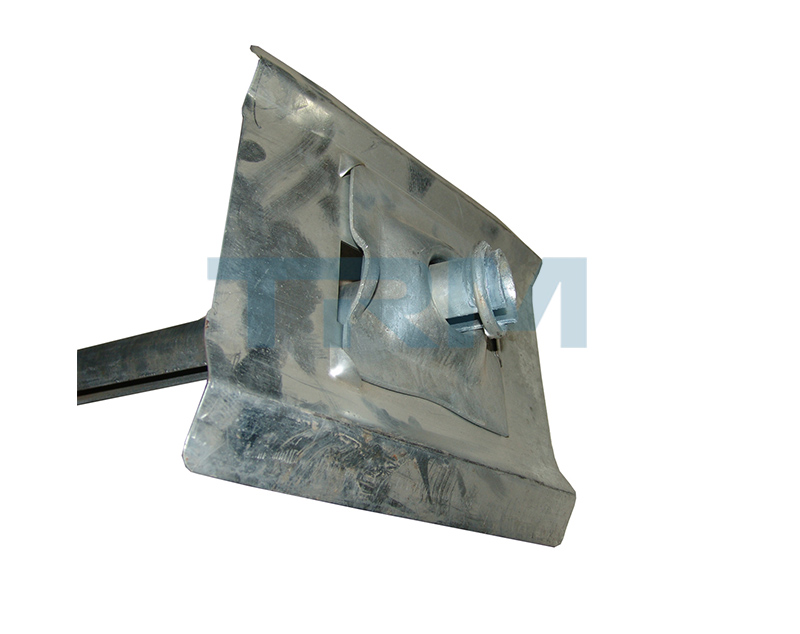

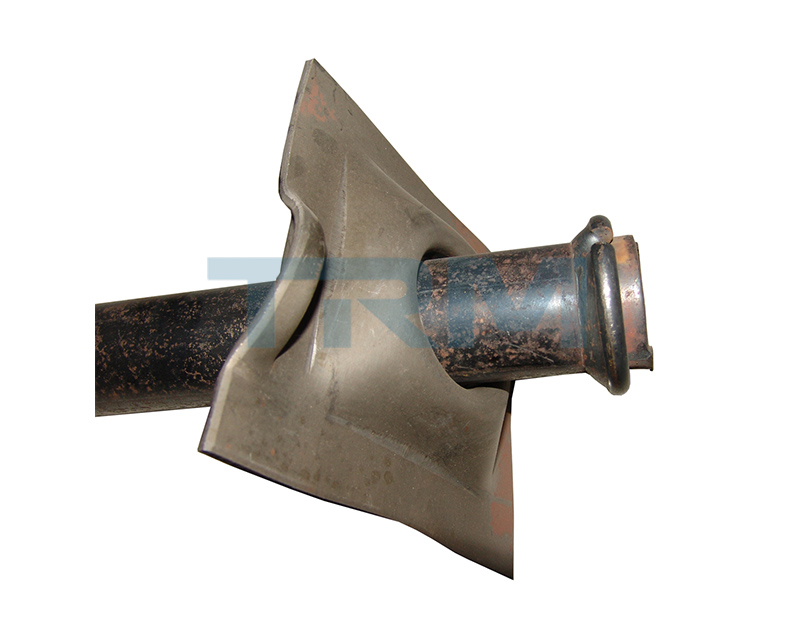

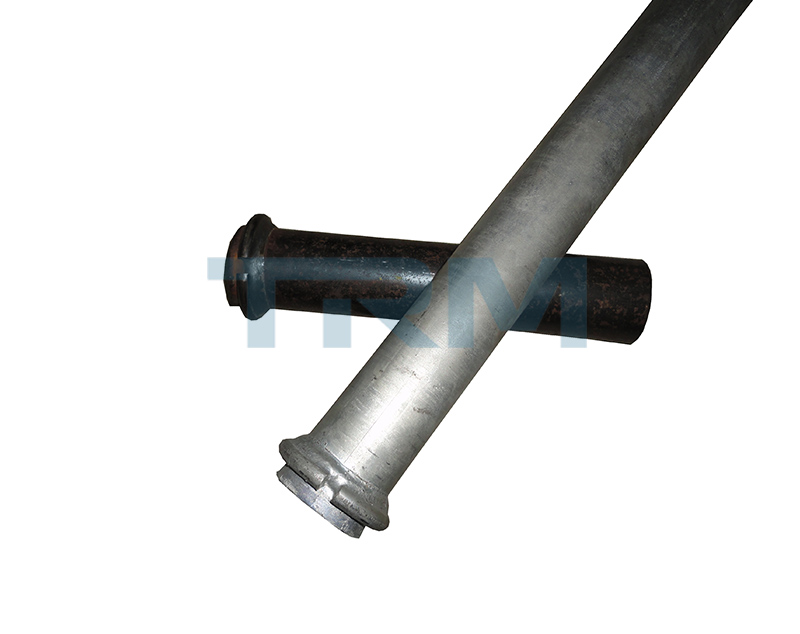

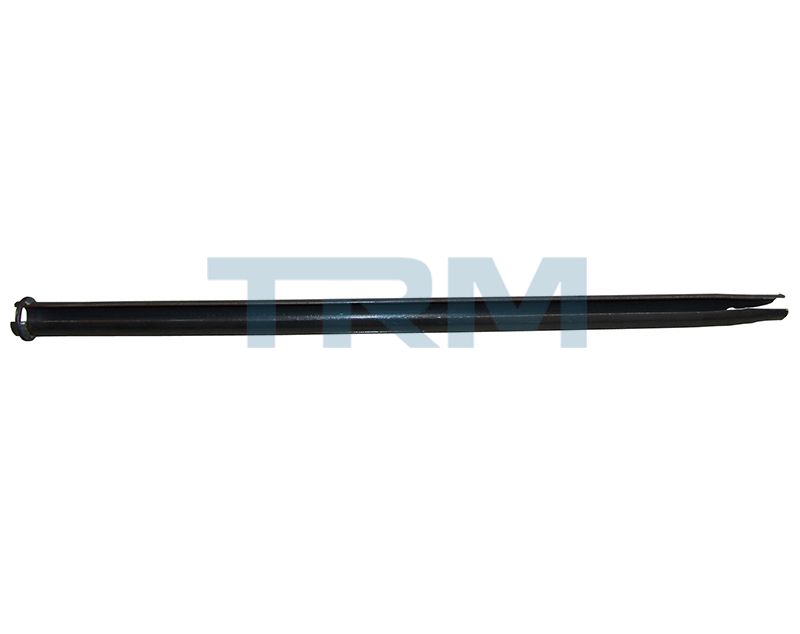

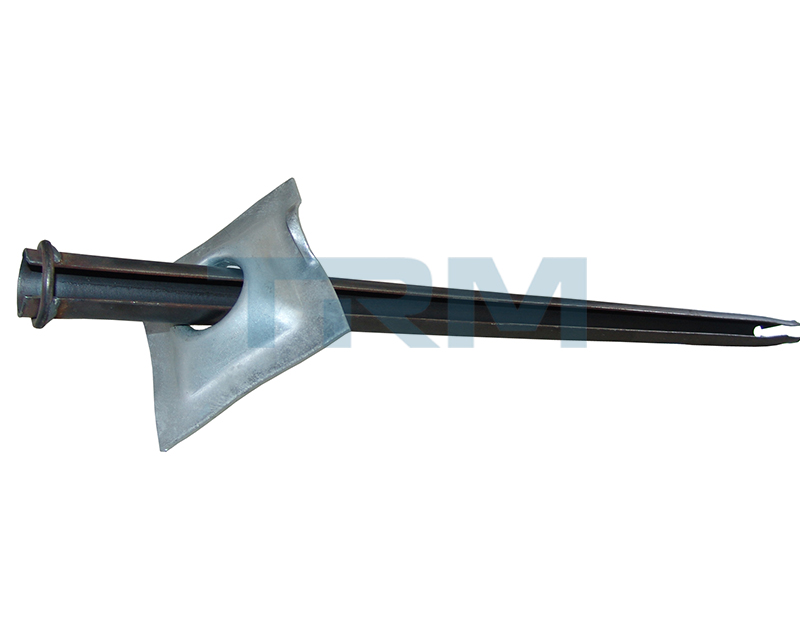

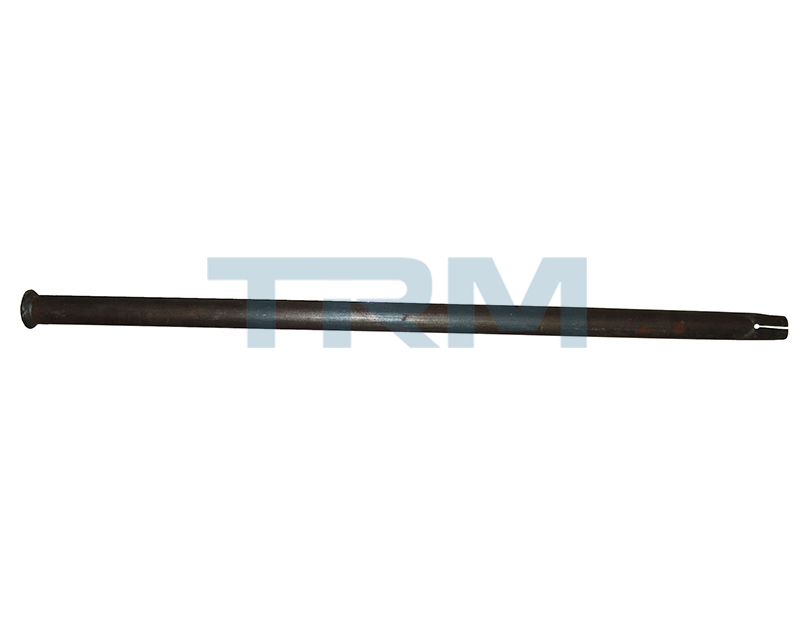

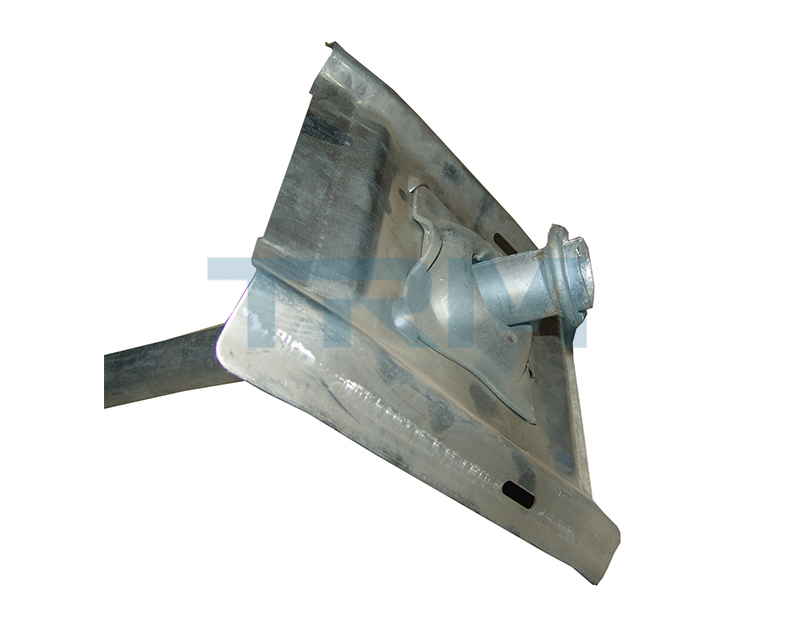

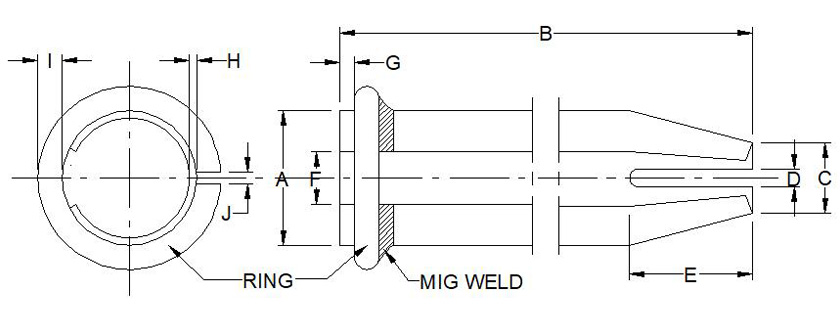

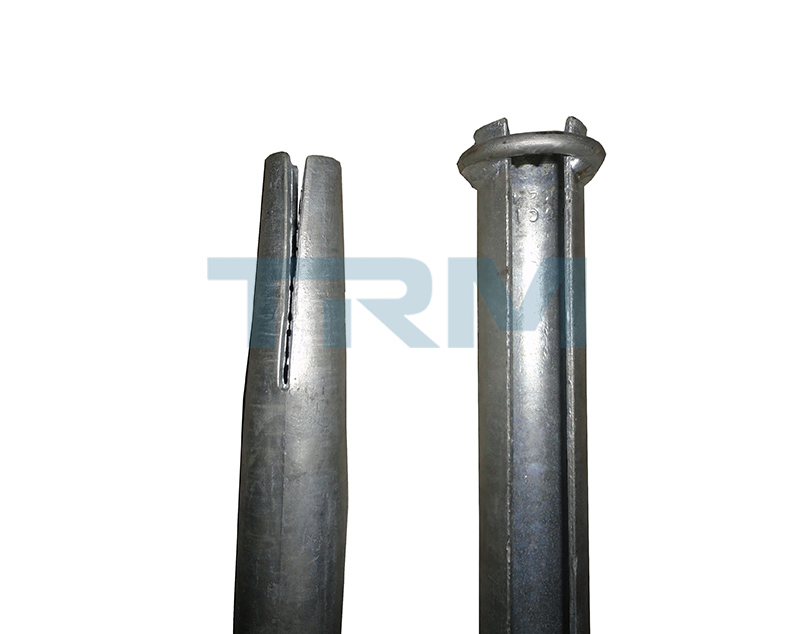

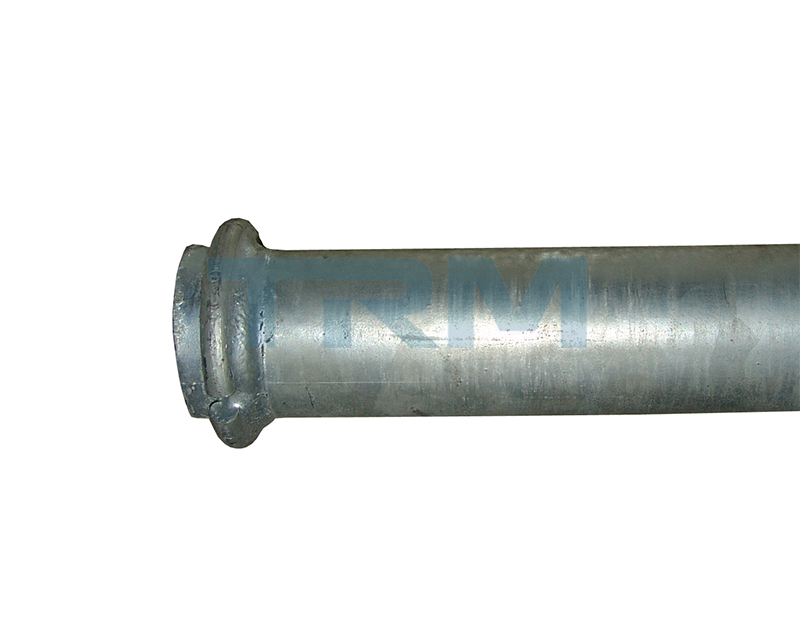

| DIMENSIONS | ||
| Bolt Diameter | A | 47mm |
| Bolt Length | B | 600-3000mm |
| Taper End Diameter | C | 38mm |
| Taper Slot Wide | D | 2mm |
| Taper Length | E | 65mm |
| Bolt Slot Wide | F | 25mm |
| Ring Location | G | 8mm |
| Material Guage | H | 2.5-3.2mm |
| Ring Wire Guage | I | 8mm |
| Ring Open Gap | J | 6.0-7.0mm |
| PHYSICAL PROPERITIES | TECHNICAL DATA | ||
| Yield Strength | Min. 345 Mpa (120KN) Typical 445 Mpa (150KN) | Recommended Norminal Bit Size | 41-45mm |
| Tube Ultimate Tensile Strength | Min. 470 Mpa (160KN) Typical 530 Mpa (180KN) | Typical Breaking Capacity | 178KN |
| Mass per Meter | 2.71 Kgs | Minimum Breaking Capacity | 133KN |
| Cross Section Area | 345 mm² | Recommended Initial Anchorage | 6 - 10 Tons (53 - 89 KN) |
| Hole Diameter Range | 43-45.5mm | Ultimate Axial Strain | Typical 21% (Thickness<16mm) |
| TRM Bolt Code | Bolt Description | Diameter (mm) | Length (mm) | Surface Finsih | Weight (Kgs) | Pack QTY (Pcs) | Ring Color ID |
| FB47-0900 | Friction Bolt 47x0900 | 47 | 900 | Untreated | 2.50 | 150 | |
| FB47-1800 | Friction Bolt 47x1800 | 47 | 1800 | Untreated | 5.10 | 150 | |
| FB47-2100 | Friction Bolt 47x2100 | 47 | 2100 | Untreated | 6.10 | 150 | |
| FB47-2400 | Friction Bolt 47x2400 | 47 | 2400 | Untreated | 6.70 | 150 | |
| FB47-3000 | Friction Bolt 47x3000 | 47 | 3000 | Untreated | 8.60 | 150 | |
| FB47-0900G | Friction Bolt 47x0900 HDG | 47 | 900 | Hot Dip Galv. | 2.60 | 150 | |
| FB47-1800G | Friction Bolt 47x1800 HDG | 47 | 1800 | Hot Dip Galv. | 5.50 | 150 | Red |
| FB47-2100G | Friction Bolt 47x2100 HDG | 47 | 2100 | Hot Dip Galv. | 6.40 | 150 | Green |
| FB47-2400G | Friction Bolt 47x2400 HDG | 47 | 2400 | Hot Dip Galv. | 7.05 | 150 | |
| FB47-3000G | Friction Bolt 47x3000 HDG | 47 | 3000 | Hot Dip Galv. | 9.00 | 150 | Yellow |
